EML SERIES

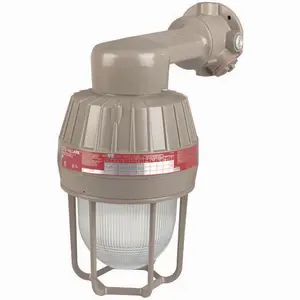

The EML Series LED High Bay/ Low Bay fixtures are high quality explosion proof light fixtures. Designed to go into the harshest environments where explosive vapors are present.
Description
Lumen Range
2,001-5,000 lm
Mounting Type
Pendant, Ceiling, Wall Bracket, Stanchion
Electrical Ratings
Ambient suitability -40°C to 55°C
“World Voltage” 120-277 VAC 50/60Hz
Hazardous Rating(s)
Class I, Div. 1 & 2, Groups C,D
Class I, Zones 1 & 2, Groups llB, llA
Class II, Div. 1 & 2, Groups E,F,G
Class III, Div. 1 & 2
Suitable for wet locations
Suitable for Paint Spray Booth
Type 3, 4, 4X
Factory Sealed
